Electric Strike Wiring Diagram (Fail Secure Mode)

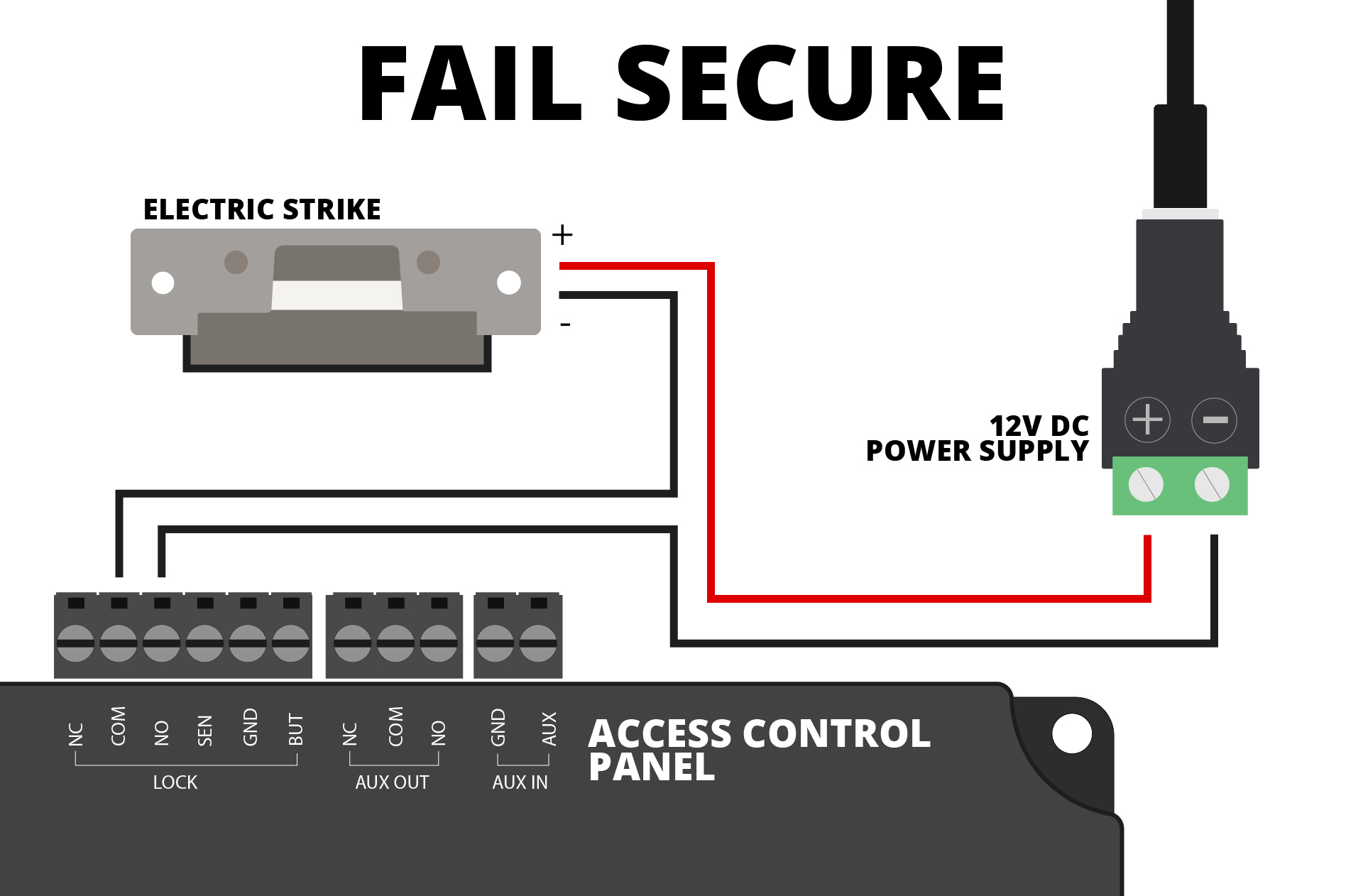

Below image shows the wiring diagram for Electric Strike with Zkteco panel. Keep in mind that this diagram is for strike in Fail Secure Mode.

Fail Secure: When power is lost to the strike, the strike will remain locked.



Recommended wire: 18 Gauge stranded wire pure copper.
