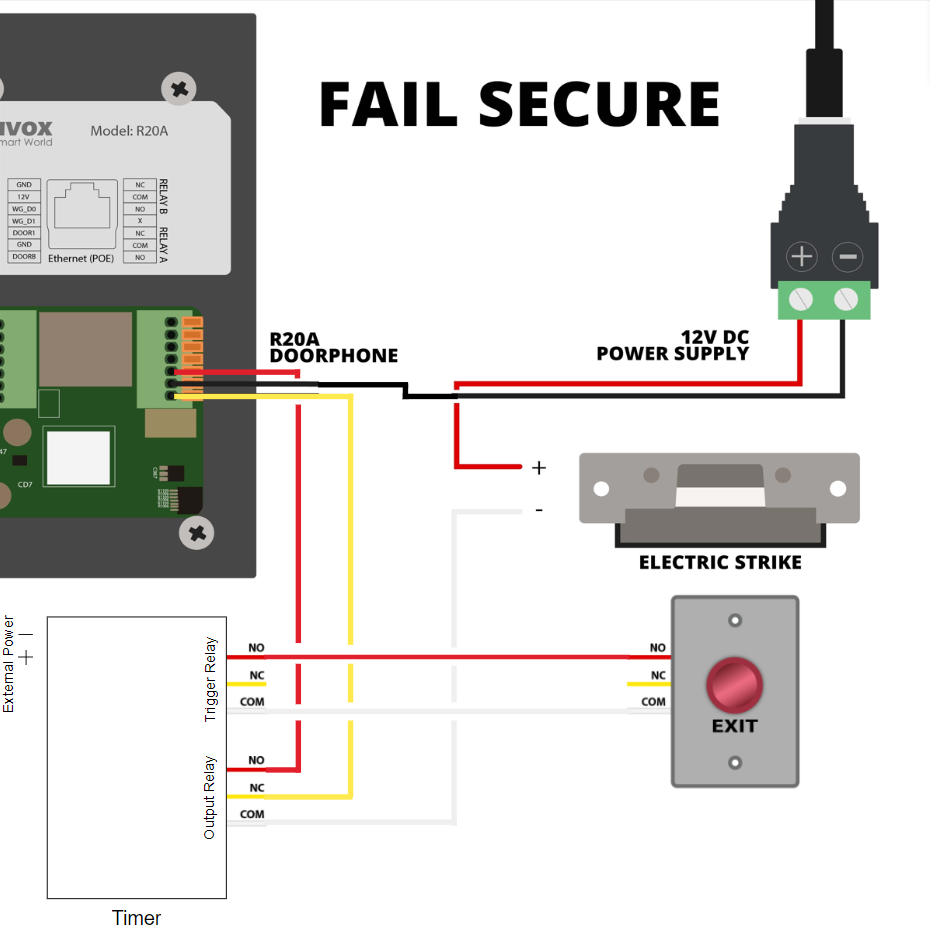

Wiring R20A to Exit Button with Timer (VIS-7100) - Fail Secure

Akuvox In Loop Exit With Timer Fail Secure.png
